KEY FEATURES
-
High-Power 500-Watt Passive 2-way PA sound reinforcement speaker system
-
Ultra-compact and lightweight system delivers excellent sound even at extreme sound pressure levels
-
Extremely powerful 10'' long-excursion driver provides incredibly deep bass and acoustic power
-
State-of-the-art 1" compression driver for exceptional high-frequency reproduction
-
Ultra-wide dispersion, large-format exponential horn
-
Ergonomically shaped handles for easy carrying and setup
-
High-quality components and exceptionally rugged construction ensure long life
DESCRIPTION

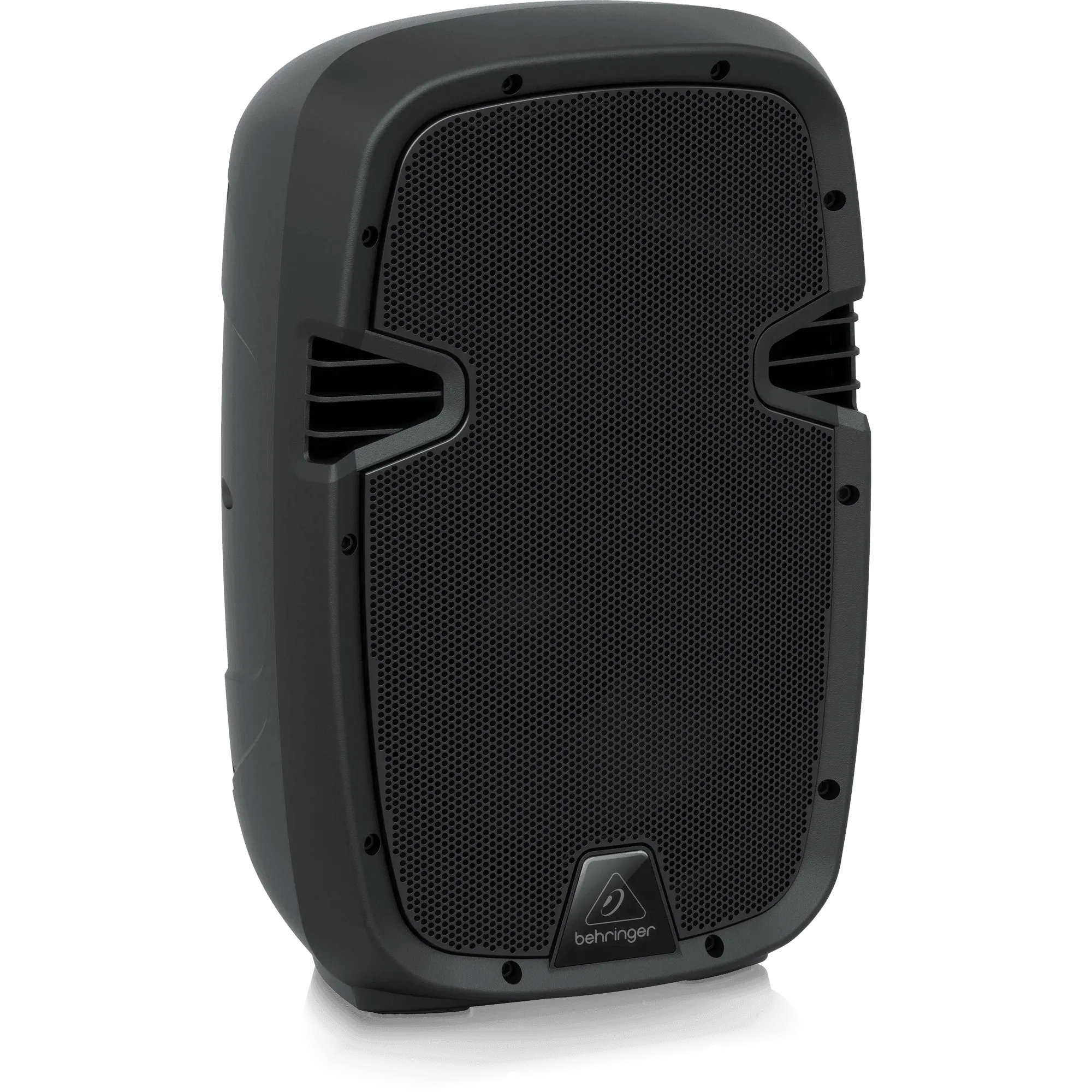

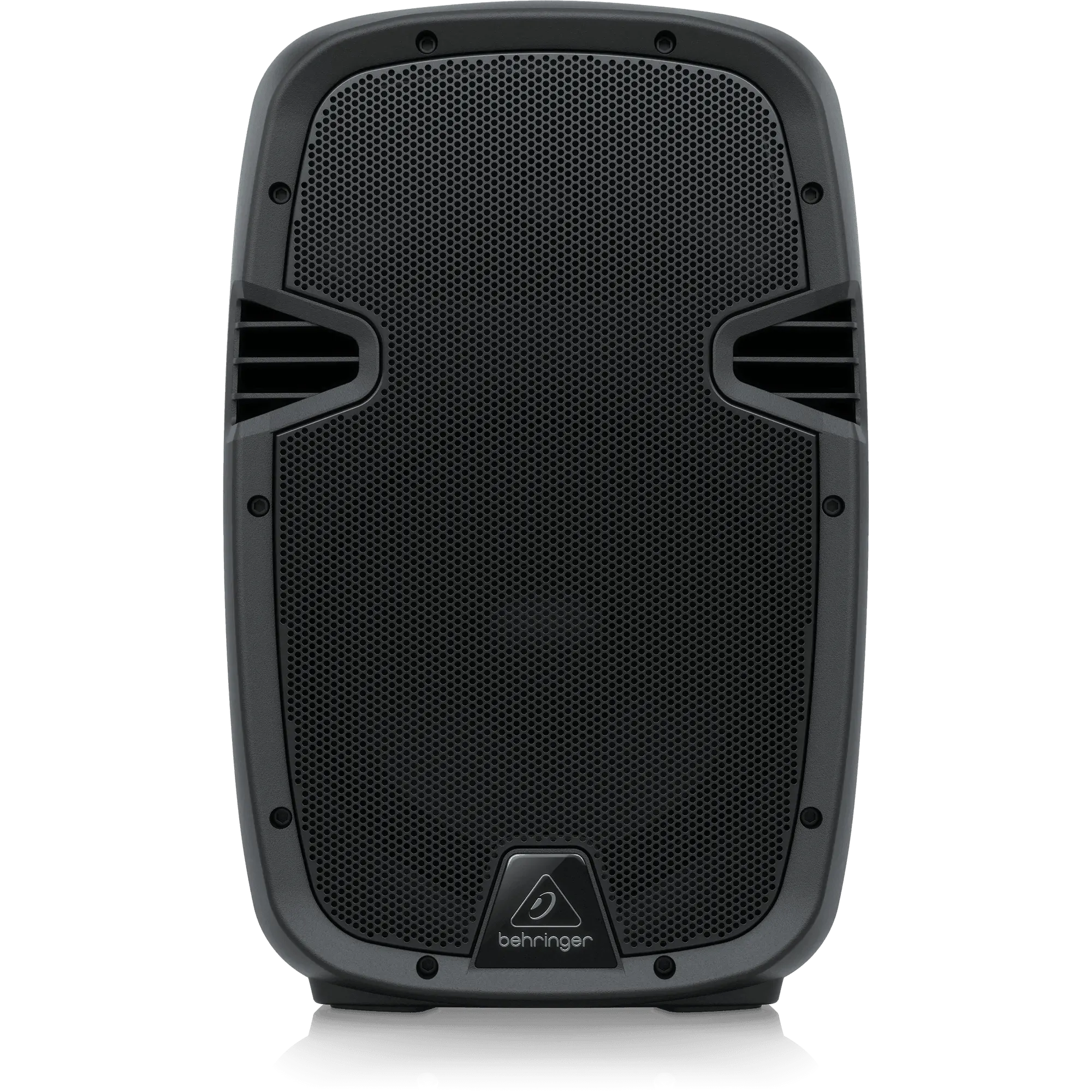

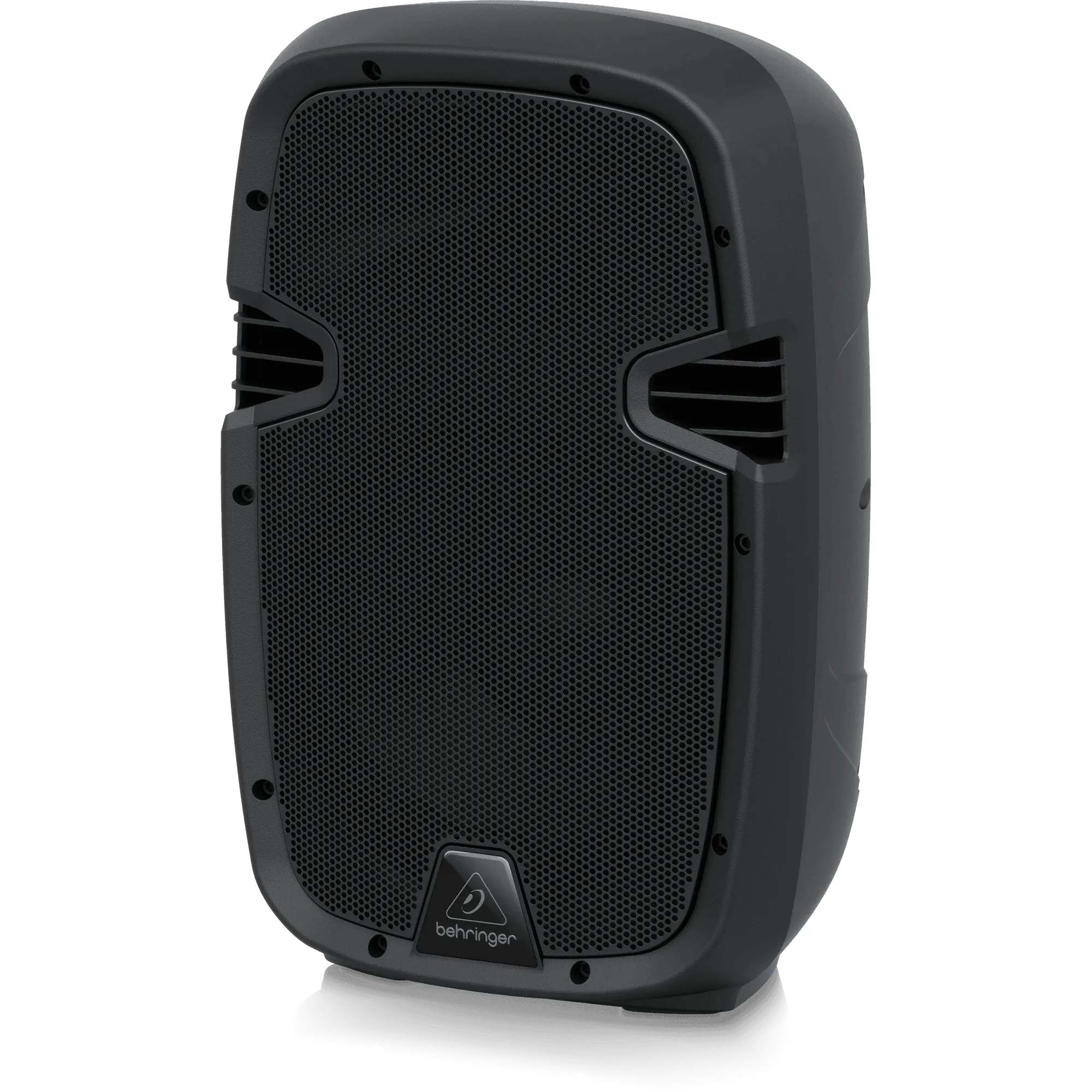

The PK110 is a super compact, exceptional 2-way, 500-Watt PA sound-reinforcement loudspeaker with Ultra-Wide sound dispersion and portability that is ideal for live sound, portable PA, monitor wedge and House of Worship applications. This amazingly versatile passive loudspeaker is ultra-and easy to carry and feature pole integrated in the housing and built-in screw thread for easy setup and hanging. Sound reinforcement has never been so easy!
SPECIFICATIONS
System Data
| Peak Power | 500 W |
| Impedance | 8 Ω |
| Type | 2-way |
| Frequency response | 80 Hz to 35 kHz (±3 dB) 20 Hz to 20 kHz (-10 dB) |
| Sound pressure level (SPL) | 96 dB (full space, 1 W @ 1 m) |
| Nominal dispersion | 70° H x 50° W |
| Crossover frequency | 2.2 kHz |
| Rigging fittings | Ergonomically shaped handle 35 mm pole socket |
Components
| Tweeter | 1" compression driver |
| Woofer | 10" (254 mm) |

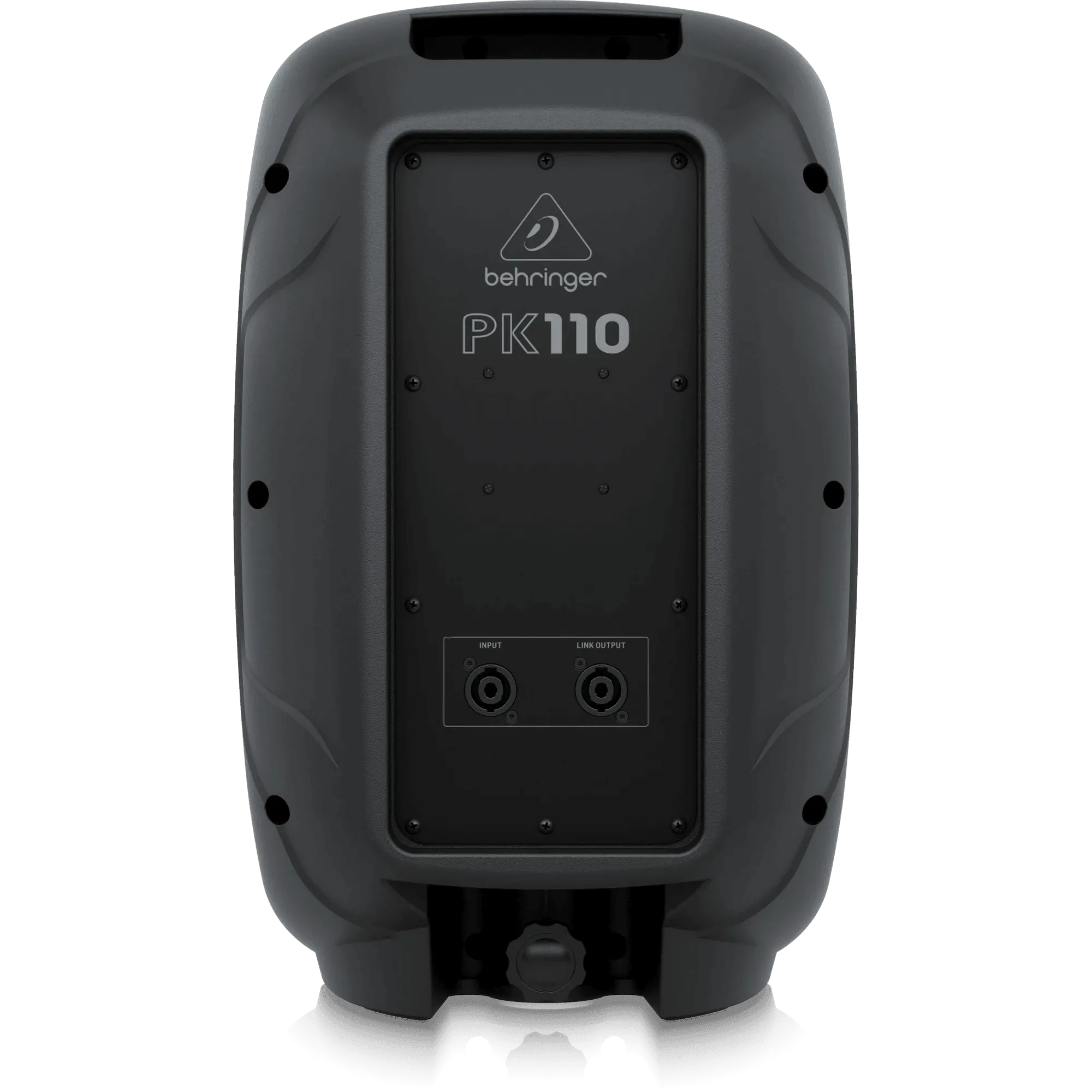

| Connectors | 2 x Speaker Twist Connectors 4 pins |
| Wiring | Pins 1 / 1- input Pins 2 / 2- link |
Dimensions / Weight
| Dimensions (H x W x D) | 491 x 315 x 261 mm (19.3 x 12.4 x 10.3") |
| Weight | 7.2 kg (15.8 lbs) |
