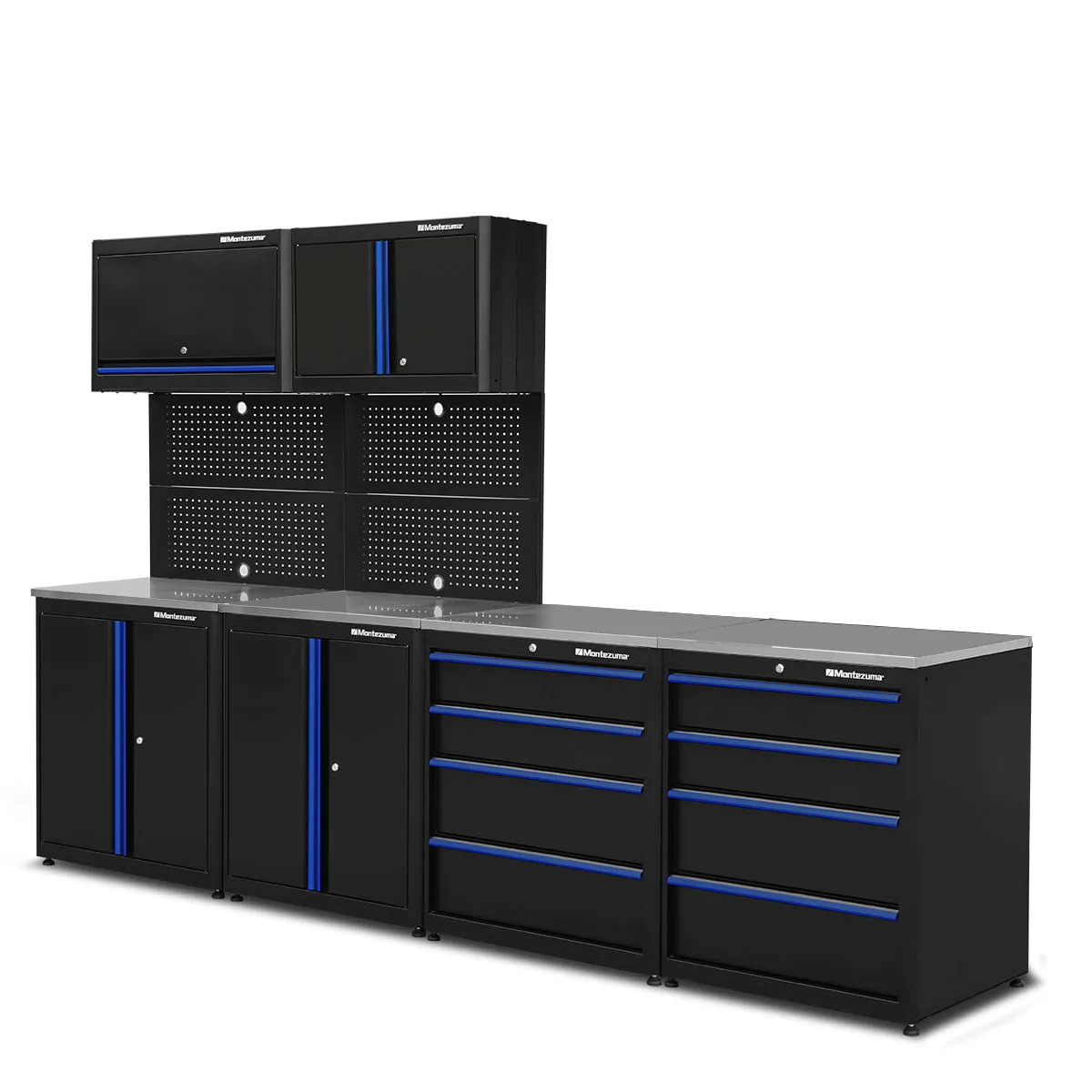

Build your perfect garage with one click. This combo combines 2 four-drawer base cabinets with stainless steel worktop, 2 two-door base cabinets with stainless steel worktop, 1 one-door wall cabinet, 1 two-door wall cabinet and 2 pegboard back walls and posts
FRUSTRATION FREE ASSEMBLY
Model: BKMZPCABFF
Includes these units:
1 x 1 x 2 x
2 x
2 x
Actual product may differ slightly from the photos. Any tools and other props shown in the photos are not included.
California Residents WARNING: Cancer and Reproductive HarmFEATURES
- Innovative folding design makes it easy to transport and assemble
- Adjustable shelves offer greater storage flexibility
- Raise and Release drawer latching system keeps drawers tightly closed
- Full extension ball bearing drawer slides hold 100 lb
- Fully lockable to prevent unauthorized access
- Magnetic latches keep doors firmly closed (excludes 1-door wall cabinet)
- Durable powder coat paint keeps color from fading
- Adjustable feet steady unit on uneven floors
Specifications

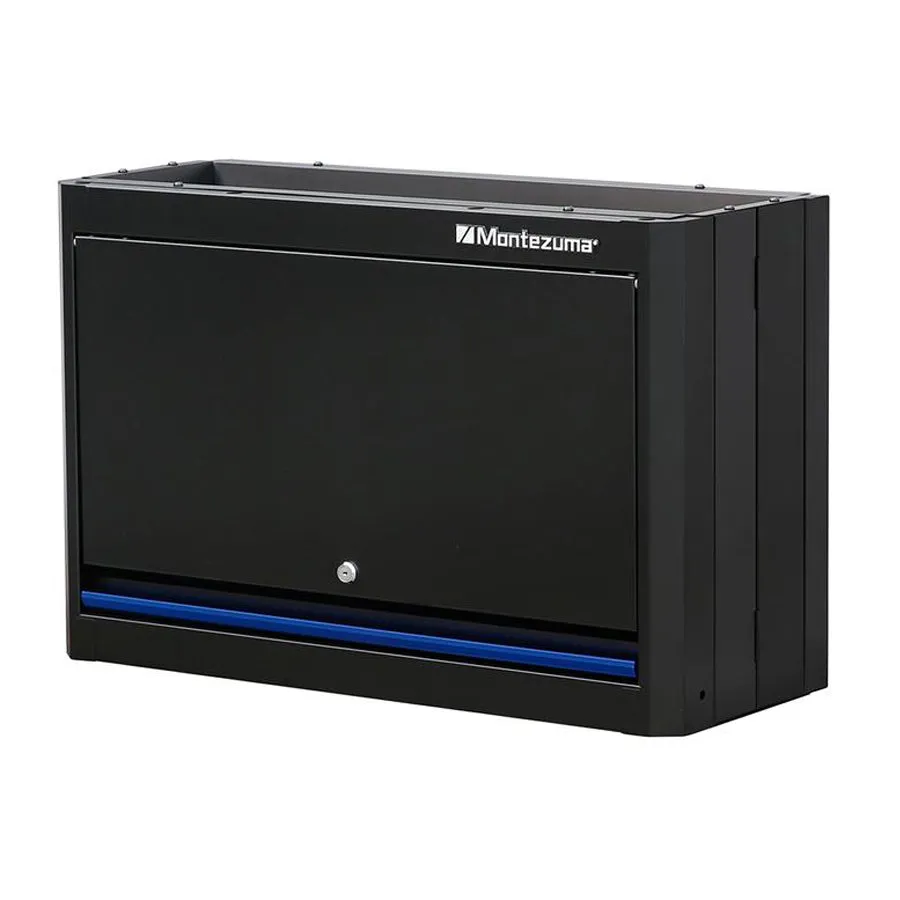

1-DOOR WALL CABINET
Width: 30-1/2" (77.6 cm)
Depth: 12" (30.5 cm)
Height: 20-1/8" (51 cm)
Net Weight: 28.66 lb (13 kg)
Maximum Shelf Weight Capacity: 50 lb (23 kg)
Lock: Tubular
Shelf: One included

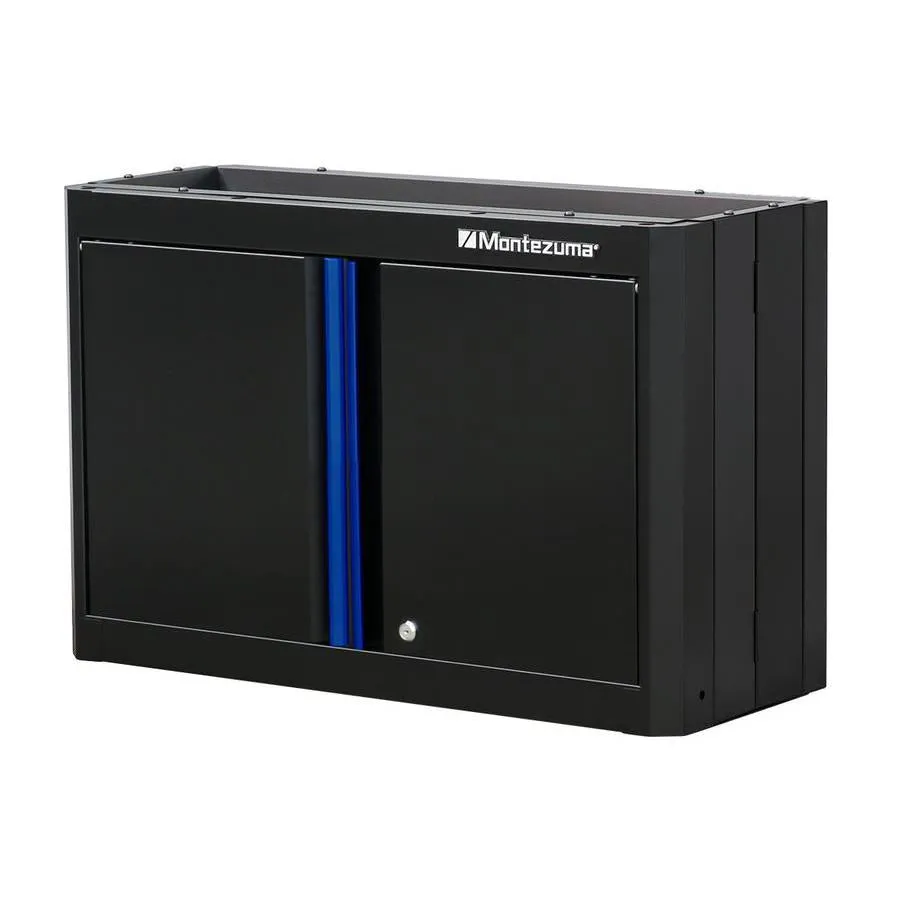

2-DOOR WALL CABINET
Width: 30-1/2" (77.6 cm)
Depth: 12" (30.5 cm)
Height: 20-1/8" (51 cm)
Net Weight: 28.66 lb (13 kg)
Maximum Shelf Weight Capacity: 50 lb (23 kg)
Lock: Tubular
Latch: Magnetic
Shelf: One included

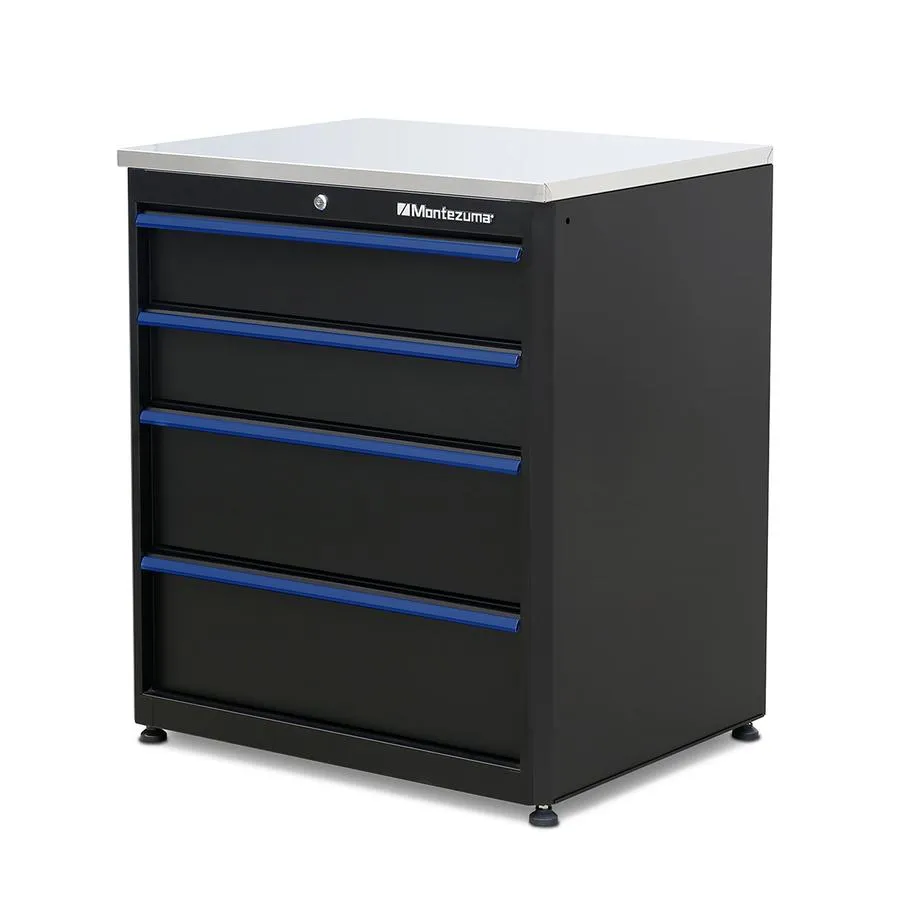

4-DRAWER BASE CABINET
Width: 30-1/2" (77.6 cm)
Depth: 24-1/8" (61.3 cm)
Height: 34-3/4" (88.1 cm)
Net Weight: 99.21 lb (45 kg)
Maximum Weight Capacity: 500 lb (227 kg)
Maximum Drawer Weight: 100 lb (45 kg)
Drawer Pulls: Raise and Release
Lock: Tubular
Worktop: Not included (sold separately)
Feet: Four adjustable feet
Drawer Liners: Four included – 26-1/4" x 20-5/8" (66.8 cm x 52.5 cm)

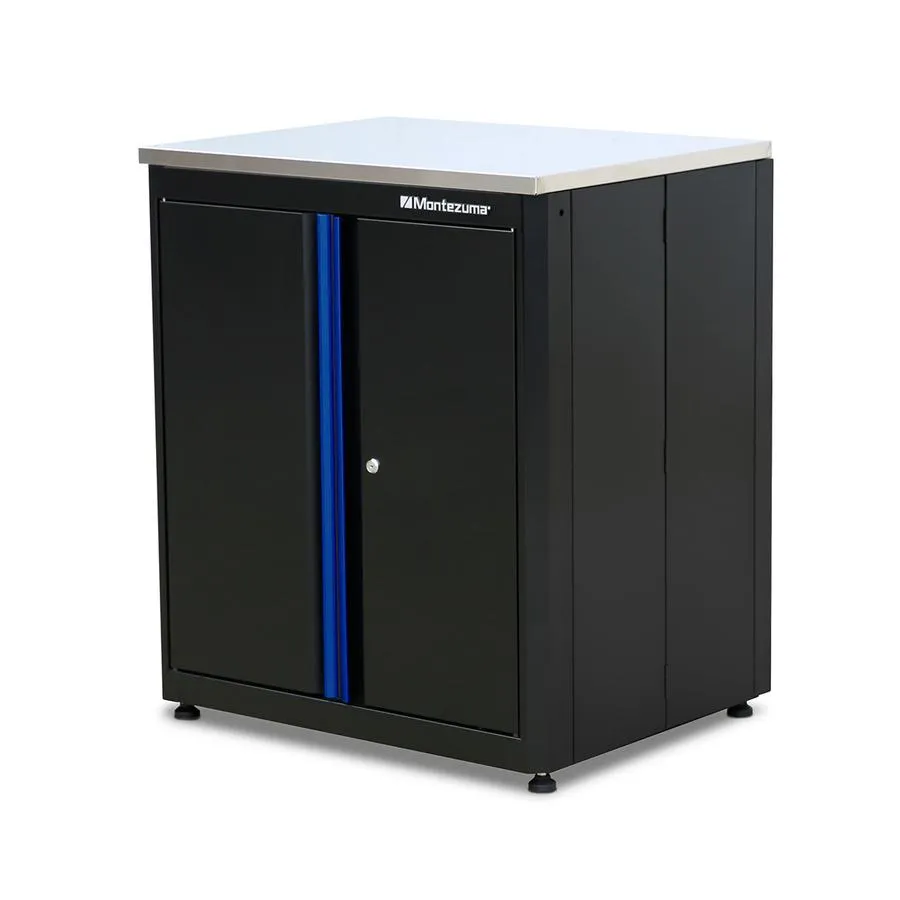

2-DOOR BASE CABINET
Width: 30-1/2" (77.6 cm)
Depth: 24" (61 cm)
Height: 34-3/4" (88.1 cm)
Net Weight: 52.91 lb (24 kg)
Maximum Shelf Weight Capacity: 100 lb (45 kg)
Lock: Tubular
Latch: Magnetic
Shelf: One included

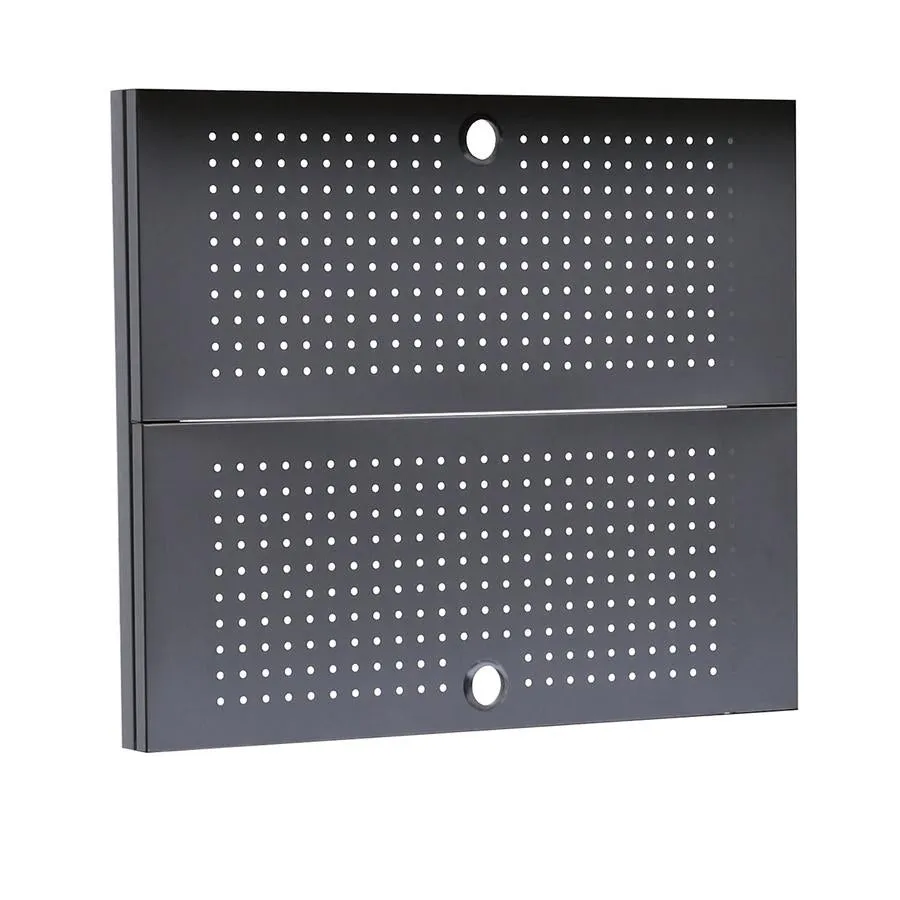

PEGBOARD BACK WALL
Width: 30-1/2" (77.5 cm)
Depth: 12-5/8" (32 cm)
Height: 7/8" (2.2 cm)
Net Weight: 8.82 lb (4 kg)
Maximum Weight Capacity: 50 lb (23 kg)
POSTS
Width: 2-1/8" (5.5 cm)
Depth: 1-1/4" (3.1 cm)
Height: 65-3/8" (166.1 cm)
Net Weight: 12.13 lb (5.5 kg)
WORKTOP
Width: 30-1/2" (77.6 cm)
Depth: 24" (61 cm)
Height: 1" (2.7 cm)
Net Weight: 25.35 lb (11.5 kg)
WARNING: Cancer and Reproductive Harm –
Manual
Owner's Manual
For more information, including assembly instructions and parts list, download the owner's manuals on our page.
